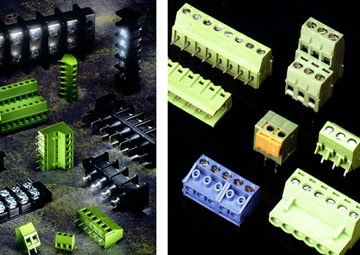

Model |
Rating |
Center Spacing |
Wire Size |
Screw Size |
Torque Rating |
Distance Between Barriers |
Recommended PCB Hole Diameter |
Operating Temperature |
Molded Material |
Breakdown Voltage |
Approvals |
 |
Series A5000 & Series CB5000 (Single Row) |
10A, 300V |
0.250" (6.35 mm) |
#16-30 AWG CU |
#3-48 zinc plated philslot SEMS screws, wire-ready standard |
4 in-lbs. max. |
0.20" (5.08 mm) |
0.062" (1.57 mm) |
105 oC (221 oF) max., -40oC (-40oF) min. |
Black, UL Rated 94VO Thermoplastic |
1600V rms |
UL E62622; CSA LR15364; CE Certified |
 |
Series A1000 & Series CB1000 (Single Row) |
15A, 250V |
0.325" (8.26 mm) |
#14-22 AWG CU |
#6-32 zinc plated philslot wire-ready screws with a #2 driving recess. |
9 in-ib. max. |
0.26" (6.6 mm) |
0.070" (1.78 mm) |
105oF (221oF max., -40oC (-4oF) min. |
Black, UL Rated 94VO Thermoplastic |
1600V rms |
UL E62622; CSA LR45364; IEC Compliance; CE Certified |
 |
Series A2000, LP2000 & CB2000 (Single Row) |
A2: 30A, 300V; LP2: 30A, 150V; CB2: 30A, 300V |
0.375" or 3/8" (9.52 mm) |
#12-22 AWG CU |
#6-32 zinc plated philslot |
9 in-lb. max. |
0.32" (8.1 mm) |
0.076" (1.93 mm); 0.062" (1.59 mm) on 0.045" terminals. |
105oF (221oF) max., -40oC (-40oF) min. |
Black, UL Rated 94VO Thermoplastic |
3400V rms (A2 & LP2); 4100V rms (CB2). |
UL E62622; CSA LR15364; IEC Compliance; CE Certified |
 |
Series A3000, LP3000 & CB3000 (Single Row) |
A3: 30A, 600V; LP3: 30A, 150V; CB3: 30A, 600V |
0.437" or 7/16" (11.10 mm) |
#12-22 AWG CU |
#6-32 zinc plated philslot screws. |
9 in-lb. max. |
0.32" (8.1 mm) |
0.076" (1.93 mm); 0.062" (1.59 mm) on 0.045" terminals |
105oF (221oF) max., -40oC (-40oF) min. |
Black, UL Rated 94VO Thermoplastic |
3500V rms (A3 & LP3); 8200V rms (CB3) |
UL E62622; CSA LR15364; IEC Compliance, CE Certified |
 |
Series A38 / B38 (Single Row) |
A38: 30A, 600V; B38: 50A, 600V |
0.437" (11.10 mm) |
#10-22 AWG CU |
#8-32 zinc plated steel. |
A38: 9 in-lb; B38: 15 in-lb |
0.378" (9.60 mm) |
0.076" (1.93 mm) |
221oF (105oC) |
Black, UL Rated 94VO Thermoplastic |
5000V rms |
UL E62622; CSA LR15364; IEC Compliance, CE Certified |
 |
Series A4000 & Series B4000 (Single Row) |
150V or 600V; 35 amps or 50 amps |
0.562" or 9/16" (14.28 mm) |
#10-16 AWG CU |
#8-32 or #10-32 zinc plated screws |
#8 screw size 16 in-lb. max., #10 screw size 20 in-lb. max. |
0.47" (11.9 mm) |
|
105oC (221oF) max., -40oC (-40oF) min. |
Black, UL Rated 94VO Thermoplastic |
|
UL E62622; CSA LR15364; IEC Compliance, CE Certified |
 |

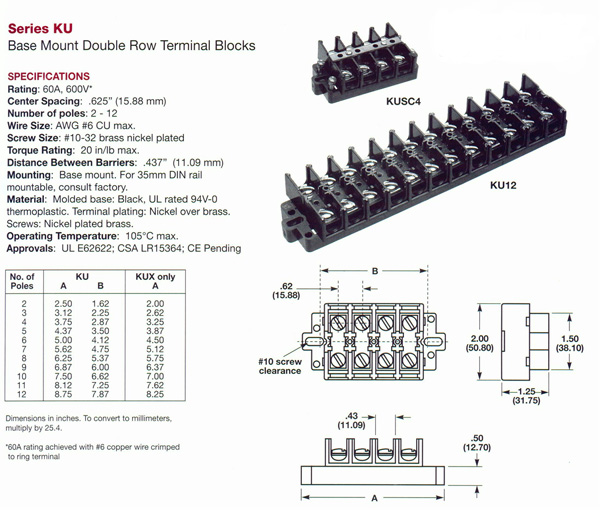

Series TB100 (Double Row) |
UL: 20A, 250V; CSA: 20A, 150V |
0.375" or 3/8" (9.52 mm) |
#14-22 AWG CU |
#6-32 philslot screws |
9 in-lb. max |
0.30" (7.62 mm) |
|
130oC (260oF) max., -40oC (-40oF) min. |
Molded Base: Black, UL rated 94VO thermoplastic; Terminal Plating: Tin over
brass; Screws: Zinc plated Steel. |
3600V rms |
UL E62622; CSA LR15364; IEC Compliance; CE Certified |
 |
Series TB200 & TB200HB (Double Row) |
TB200-20A, 300V; TB200HB-20A, 600V |
0.437" or 7/16" (11.10 mm) |
#12-22 AWG CU |
#6-32 philslot screws |
9 in-lb. max. |
0.353" (8.97 mm) |
|
130oC (260oF) max., -40oC (-40oF) min. |
Molded Base: Black, UL rated 94VO themoplastic; Terminal Plating: Tin over brass;
Screws: Zinc plated steel. |
4800V rms |
UL E62622; CSA LR15364; IEC Compliance; CE Certified |
 |
Series TB300 & TB345 (Double Row) |
TB300-30A, 600V; TB345-45A, 600V |
0.562" or 9/16" (14.28 mm) |
#10-22 AWG CU |
TB300-#8-32 philslot screws; TB345-#10-32 philslot screws |
#8 screws-16 in-lb.; #10 screws-20 in-lb. |
0.41" (10.5 mm) |
|
130oC (260oF) max., -40oC(-40oF) min. |
Molded Base: Black, UL rated 94VO thermoplastic; Terminal Plating: Tin over brass;
Screws: Zinc plated steel |
7500V rms |
UL E62622; CSA LR15364; IEC Compliance; CE Certified |
 |
Series TB400 (Double Row) |
75A, 600V* -- *75A max. with pressure terminal connector and #4 AWG; 30A max. with
#10 AWG |
0.687" or 11/16" (17.45 mm) |
#10-14 AWG CU |
#10-32 philslot screws> |
20 in-lb. |
0.56" (14.3 mm) |
|
130oC (260oF) max., -40oC(-40oF) min. |
Molded Base: Black, UL rated 94VO thermoplastic; Terminal Plating: Tin over brass;
Screws: Zinc plated steel |
7500V rms |
UL E62622; CSA LR15364; IEC Compliance; CE Certified |
